2.International advanced energy conservation technology testing 3.Light aluminium board punch press fan blade, wide angle, heavy wind and low noise. 4.Outer covering is stainless steel or steel spraying available 5.Equipped with beautiful and convenient button type hanging articles 6.Long service life over 10 years.
Urban Gardens USA
24/36/50/54 inch used for green houses exhaust fan low noise level ventilate equipment
24/36/50/54 inch used for green houses exhaust fan low noise level ventilate equipment
Regular price
$989.99 USD
Regular price
$0.00 USD
Sale price
$989.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

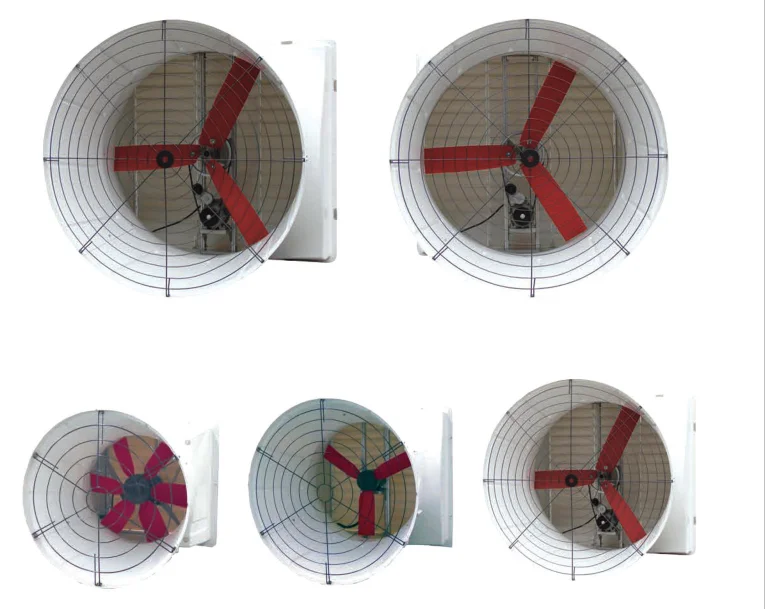

FIBERGLASS CONE FAN LINE
|
Name
|
Rated power
|
Static Pressure
|
0
|
15
|
25
|
37
|
50
|
|
54"Fibergalss cone fan
|
1500W
|
m3/h Capacity
|
55500
|
52900
|
50800
|
48300
|
45600
|
|
50"Fibergalss cone fan
|
1100W
|
m3/h Capacity
|
46500
|
44000
|
41500
|
38900
|
35200
|
|
36"Fibergalss cone fan
|
750W
|
m3/h Capacity
|
23500
|
22500
|
21800
|
21000
|
20000
|
|
24"Fibergalss cone fan
|
550W
|
m3/h Capacity
|
11700
|
11300
|
11100
|
10600
|
10200
|
|
18"Fibergalss cone fan
|
250W
|
m3/h Capacity
|
6600
|
6200
|
6017
|
5484
|
4451
|
Features
1.Aifoil glassfiber-reinforced impellers. 2.All internal hardware is made of stainless stee and aluminum to ensure maximum corrosin Protection. 3.Maximum ambient temperature of 40. 4.Belt tensioner mounted on the frame. 6.Fan is belt driven(50"and 54"). 8.Direct drive versions available for 24"and 36". 9.Materials resistant against aggressive climates.
10.Heavy gauged rotomolded discharge cone, stackable for logistic advantages. 11.Extremely rugged and corrosion resistant SMC fiberglass casing SMC. 12.All materials are smoothly finished on both sides and protected by UV coating.
Advantage
1.Maximal air performance. 2.High efficiency. 3.High durability. 4.Easy to maintain and install. 5.Optimal aerodynamical air intake. 6.2-year warranty on the motor. 7.Low noise level. 8.Easy to clean for optimal hygiene.
BYT SERIES PUSH-PULL CENTRIFUGAL FAN
Structure and principle
BY series High class fan is mainly made up of blade.Centrifugal Opening Device, motor,outer frame protecting nets,supporting frames,shutters.It is made based on aerodynamic,effectively reduce the wind resistance.The major parts are made of galvanized steel sheets and Stainless steel sheets.All the products are widely used in various types of buildings as farms,greenhouses,factory building.
Air Flow Curve
Technical parameter
SHUTTER CONE FAN WITH CENTRIFUGAL OPENING SYSTEM
Performance characteristics
1.Galvanized steel frame is made of 275g/m2.galvanized layer avoid rust. 2.Trans-push-pull louver with thickness of 0.8mm and 1.5mm to achieve effective sealing; The high strength push and pull open device can make the shutter open,always keep the Angle of 90 degrees with the horizontal ground, the air quantity is constant 3.BangYuan fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming.Large air volume,no deformation,no broken,no dust,attractive and durable Thickness 12mm,su rface finish BA grade.
Technical parameter:
BY AIR CIRCULATION FAN
Performance characteristics
Technical parameter:
